PET Packging Straps Making Machine Capacity 200-350Kg/hr Banding/Belt Production line

Brand Name : YXZX

Model Number : YXZXPET-90A; YXZXPET-100A; YXZXPET-125A; YXZXPET-135A; YXZXPET-150A

Certification : ISO 9001:2015 And CE

Place of Origin : Shenzhen, China

MOQ : 1Set

Price : 101449.8-289856

Payment Terms : T/T,L/C

Supply Ability : 80Set/Year

Delivery Time : 35-45 Working Days

Packaging Details : Large equipment wrapped with stretch film; Small accessories packed in wooden cases

Color : As shown in the picture or customizable

Screw Diameter (mm) : 90, 100, 125, 135, 150

Screw Material : 38CrMoALA

Equipment Capacity (KG/H) : 100-210, 130-300, 200-500, 250-650, 300-800 or customizable

Equipment Power Consumption (KW/H) : 80-100, 120-130, 130-140, 170-180, 200-220

Applicable Materials : PET Granules, PET Bottle Flakes, Recycled Strapping Scraps, Material Made From Clothing.

Finished Product Specifications : Width 9–32 mm, Thickness 0.4–1.4 mm

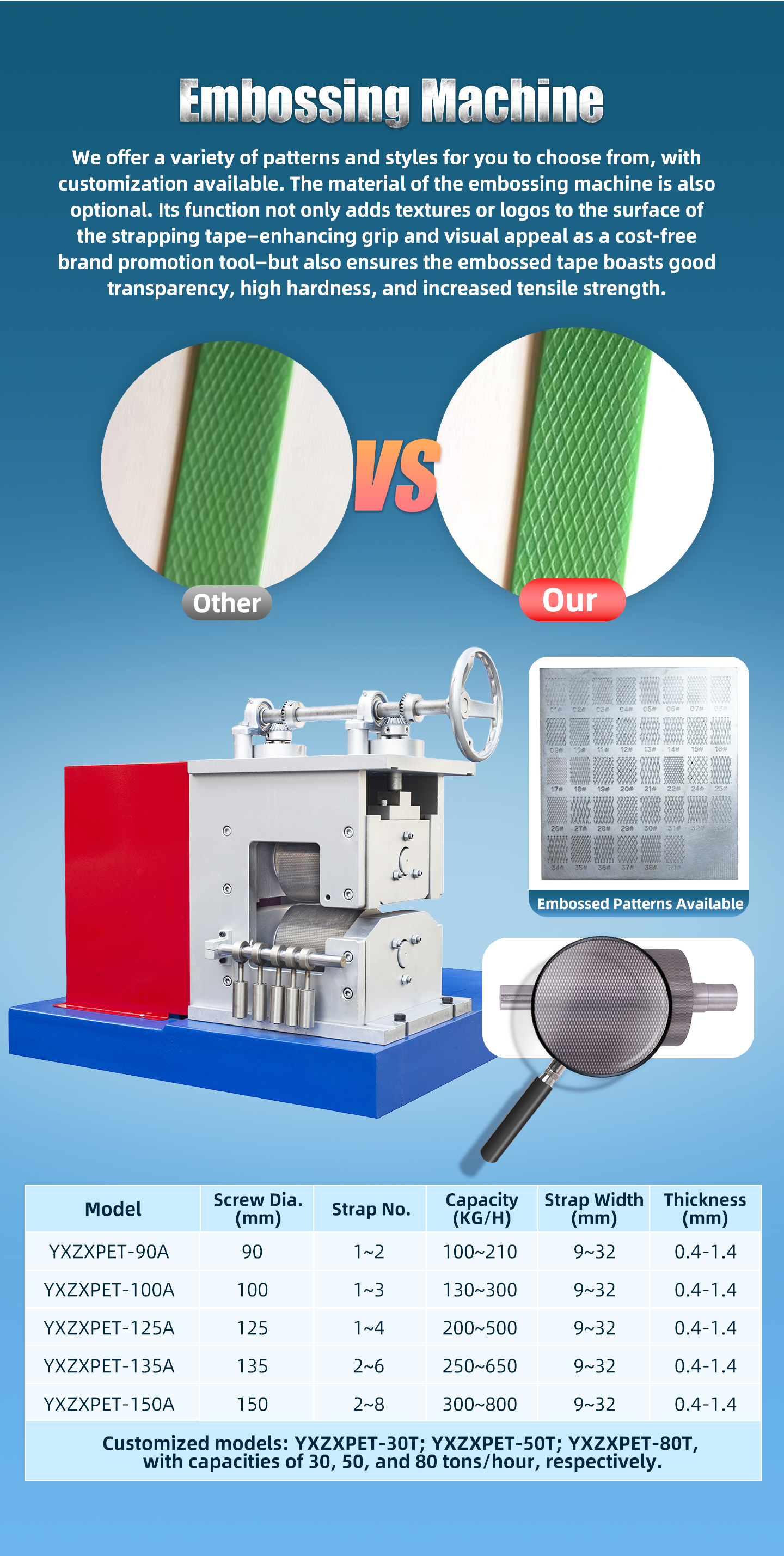

Embossing Machine : Optional embossing patterns

Optional Equipment : Manual Strap Winder, Servo Strap Winder, Fully Automatic Strap Winder

Warranty : 1 YEAR

nstallation Dimensions (L×W×H) (mm) : 50000×1500×7000, 60000×2000×8000 and so on

Installation : Video-guided installation & On-site installation service

Weight : About 20270KG

Screw speed (rpm) : 1000rpm

Screw L/D Ratio : 1:29
